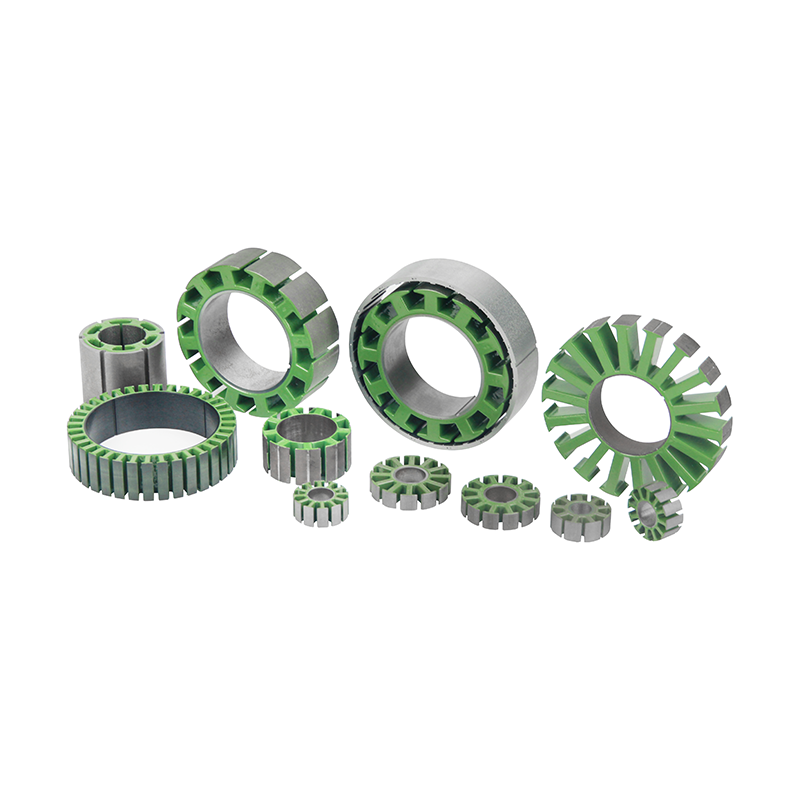

The stator core with coating represents a critical advancement in motor efficiency and electrical insulation. Engineered specifically to eliminate interlaminar short circuits, this specialized component achieves ultra-low core loss. This direct reduction in energy dissipation translates to enhanced overall motor performance and significantly improved electrical insulation. By mitigating the heat generated through parasitic eddy currents, the coated laminations contribute to a cooler running motor. This thermal stability reduces the strain on surrounding components and extends the maintenance intervals of the entire system.
When examining the physical construction, the visual absence of traditional interlocking or welding marks is immediately apparent. Instead, the laminations are bonded utilizing an advanced coating process that leaves a smooth, uniform finish across the entire surface. Furthermore, the implementation of sealed slots coating technology introduces a highly effective alternative to traditional slot wedge assemblies. By fully enclosing the slots with a resilient coating barrier, it prevents copper wires from ejecting or shifting during high-speed motor operation. The tactile feel of the coated slots reveals a continuous, friction-reducing surface that protects delicate copper windings from abrasion during insertion, simplifying the winding process while extending the lifespan of the motor by reducing mechanical wear.
Selecting the appropriate insulation and protective layer is vital for specific operational environments. We provide a comprehensive range of formulation options designed to meet precise stamping requirements and thermal classifications, ensuring long-term reliability under demanding conditions.
Diverse Coating Materials and Types: Depending on the exact insulation class required, options include C-5 inorganic coatings, C-6 organic coatings, epoxy resin powders, and electrophoretic coatings. Each formulation offers distinct advantages, from enhanced punchability during manufacturing to superior moisture resistance in damp environments.
Core Process and Micro-Level Precision: The application utilizes an advanced electrostatic coating technique combined with an interlock-free and weld-free lamination bonding process. This ensures an exceptionally uniform thickness—strictly controlled down to 0.03mm. The electrostatic method guarantees deep penetration into microscopic crevices and blind corners, leaving no exposed metal that could compromise the insulation matrix.
Extreme Temperature and Corrosion Resistance: For applications demanding severe thermal endurance, specific inorganic coatings can withstand annealing temperatures up to 1550°F. This exceptional heat tolerance allows the stator core to survive the intense burn-off processes required during motor rewinding without degrading the base insulation.
Electrophoretic Deposition Benefits: The electrophoretic process submerges the core in a specialized bath where an electrical field draws the coating particles uniformly onto every exposed surface. This results in a visually sleek, protective finish that feels entirely smooth to the touch, effectively sealing the metal away from atmospheric moisture and providing outstanding rust prevention in harsh industrial atmospheres.
Consistent electrical performance requires uncompromising verification methods. Our internal testing protocols are designed to ensure every batch of stator cores meets stringent industry standards before integration into your mechanical systems.
Every coated stator core undergoes rigorous evaluation, prominently featuring the Franklin Test to accurately measure surface insulation resistance. The Franklin Test equipment applies precise, measured pressure across the lamination stack while passing a controlled electrical current through it, providing empirical data on the coating's resistive capabilities. By quantifying the interlaminar resistance under these specific conditions, we verify that the coating effectively isolates each lamination. This meticulous testing prevents the localized eddy currents that cause excessive heating and efficiency drops. The visual inspection of the coating also ensures there are no pinholes, blistering, or uneven pooling, guaranteeing a dependable insulation layer across the entire geometry of the core.
Beyond standard production, comprehensive engineering support is available to optimize your procurement and maintenance strategies. We offer custom manufacturing for entirely new core designs tailored to specific performance metrics. For existing equipment, our refurbishment services can strip and re-coat old stator cores, fully restoring their original interlaminar resistance and extending their operational life. Additionally, complete reverse engineering capabilities allow for the exact replication of legacy components. Our technicians utilize advanced 3D scanning and metallurgical analysis to decode the exact specifications of OEM parts that are no longer available on the market. This meticulous approach ensures that the newly fabricated or refurbished cores match or exceed the original performance benchmarks, effectively reducing overall equipment maintenance costs and minimizing system downtime.
