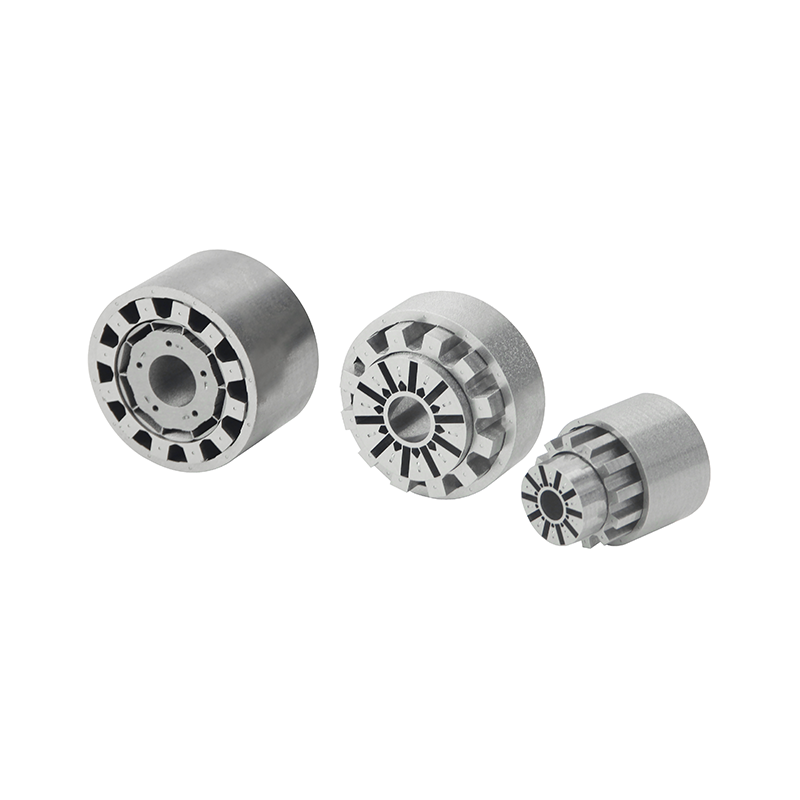

The Sun-flower Motor Core represents a critical advancement in electromagnetic engineering, specifically designed to serve as the beating heart of modern, high-efficiency electric motors. Characterized by its distinctive "sun-flower" slot configuration, this core architecture is engineered to optimize magnetic flux distribution while actively suppressing parasitic eddy currents. When handling the physical component, engineers immediately notice the dense, substantial weight of the premium cold-rolled silicon steel, coupled with exceptionally smooth, burr-free laminations that speak to the precision of the manufacturing process. This specific material selection is deliberate, establishing a foundation of high magnetic permeability and exceptionally low iron loss. By addressing these fundamental electromagnetic properties at the material level, the core significantly enhances the overall energy conversion ratio and extends the operational lifespan of the final motor assembly. For procurement teams and motor designers focused on thermal management, the optimized geometric design actively facilitates better heat dissipation, allowing motors to run cooler even under sustained, heavy-duty operational loads. The structural rigidity achieved through advanced assembly techniques ensures that each core maintains its dimensional stability, resisting deformation under intense mechanical stress and thermal cycling.
Premium Core Material: Constructed entirely from select cold-rolled silicon steel sheets. This material choice directly translates to superior magnetic conductivity and drastically reduced iron loss, forming the basis for highly efficient energy transfer within the motor casing.
Optimized Magnetic Circuitry: The proprietary sun-flower slot geometry is mathematically calculated to refine the magnetic path. This specific configuration substantially lowers eddy current losses, which in turn elevates the overall energy efficiency ratio and improves the thermal dissipation characteristics of the operating motor.
Structural Integrity & Assembly: Utilizing high-precision progressive die stamping, each lamination is formed with exactitude. The layers are then secured using advanced auto-interlocking mechanisms and focused laser welding techniques. This dual-method approach guarantees extraordinary structural strength and uniform dimensional consistency across massive production batches.
Micrometer-Level Tolerance Control: Every unit undergoes rigorous dimensional verification. By maintaining strict micrometer-level tolerances, the cores ensure perfect concentricity and alignment when integrated with stators and rotors, effectively eliminating vibration and mechanical noise during high-speed rotation.
Global Compliance & Certification: The entire production ecosystem operates under ISO9001 and the stringent IATF16949 automotive quality management systems. Furthermore, all materials comply strictly with RoHS environmental standards, ensuring seamless integration into supply chains targeting heavily regulated international markets.
The creation of the Sun-flower Motor Core relies on a heavily automated, strictly monitored manufacturing environment. The production floor is defined by the rhythmic, precise impacts of high-tonnage progressive stamping presses, transforming raw silicon steel coils into complex, perfectly aligned laminations. Following the stamping phase, the components move through automated laser welding stations where intense, focused light fuses the layers with microscopic precision, leaving a clean, oxidized-free weld seam that guarantees structural permanence. To maintain absolute consistency across large-scale production volumes, a comprehensive quality control system is implemented. Automated optical inspection (AOI) systems scan every contour and slot, verifying measurements against digital blueprints. This relentless pursuit of dimensional accuracy ensures that every single core delivered to an assembly line performs identically, drastically reducing the defect rate for motor manufacturers.
Understanding that modern electromechanical engineering frequently demands unique form factors, extensive OEM and ODM services are integrated directly into the workflow. Engineering teams are equipped to translate complex client blueprints into tangible prototypes rapidly. The facility boasts an agile tooling department capable of rapid mold development, allowing for swift transitions from initial concept to full-scale production. Whether a project requires specific slot modifications to accommodate unique winding patterns or adjustments to the outer diameter for a specialized housing, the manufacturing infrastructure is designed to adapt precisely to these bespoke requirements without extending lead times unnecessarily.
The exceptional efficiency and thermal stability of this core design make it a foundational component across several demanding sectors. In the realm of New Energy Vehicles (NEVs), these cores are critical for drive motors where maximizing battery range and managing intense heat generation are paramount. Industrial servo motors rely on the precise magnetic characteristics of the sun-flower design to achieve instantaneous torque response and exact positional control. Additionally, the lightweight yet structurally robust nature of the core makes it highly sought after for unmanned aerial vehicles (UAVs) and advanced smart home appliances, where power density and silent operation dictate the success of the final consumer product.
