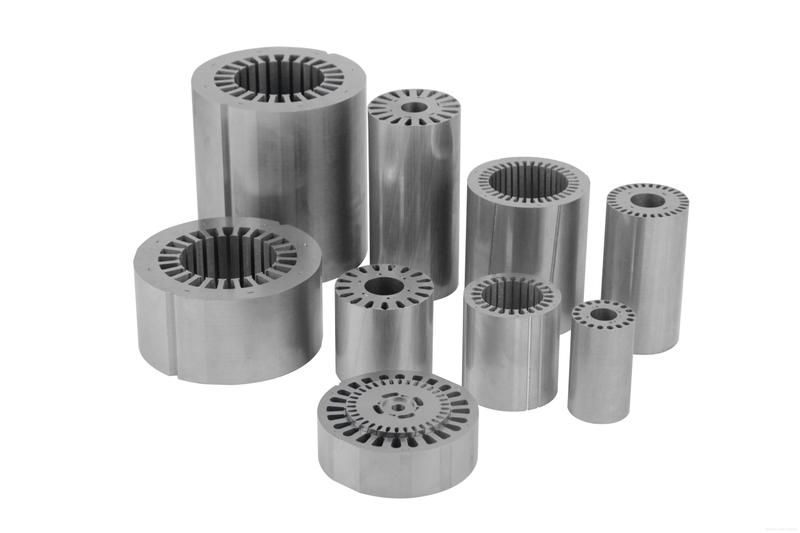

When engineering specialized electric motors, the foundation of performance lies in the efficiency of the magnetic circuit. This Induction stator rotor core is engineered to minimize energy dissipation while maximizing torque output. By utilizing select silicon steel sheets available in precise thicknesses of 0.2mm, 0.35mm, and 0.5mm, the laminations effectively suppress eddy current losses that typically generate unwanted heat during rapid magnetic reversals. Paired with performance-grade neodymium magnets, this core assembly creates a highly concentrated magnetic flux density. The physical construction feels exceptionally dense and rigid, a direct result of advanced interlocking and welding techniques that ensure the laminations remain tightly bound under extreme rotational stress. This meticulous material selection translates directly to a cooler running motor, extending the operational lifespan of the final assembly and significantly improving the overall energy conversion rate for demanding electromechanical systems.
Optimized Stator Slot Geometry: Carefully calculated slot designs reduce cogging torque, ensuring smooth rotation even at low speeds. The internal metallic surfaces are treated for exceptional smoothness, preventing damage to the delicate copper wire insulation during the winding process.
Versatile Winding Configurations: Engineered to accommodate both concentrated and distributed winding patterns. This flexibility allows motor designers to prioritize either maximum torque density or smoother sinusoidal back-EMF, depending on the specific drive controller requirements.
High-Precision Dynamic Balancing: Each rotor undergoes strict dynamic balance calibration. By removing minuscule amounts of material at precise vectors, we eliminate eccentric mass. This results in a rotor that spins with virtually zero perceptible vibration, drastically reducing bearing wear and acoustic noise during high-speed operation.
Enhanced Thermal Dissipation: The geometric arrangement of the cooling channels within the lamination stack promotes active airflow. This structural consideration pulls heat away from the copper windings and magnetic materials, preventing thermal demagnetization and maintaining consistent output under heavy continuous loads.
Off-the-shelf components rarely meet the exact specifications required for specialized electromechanical projects. To address this, we operate an independent, fully equipped mold research and manufacturing workshop. This facility allows us to bypass standard limitations and offer deep customization for non-standard stator and rotor geometries. Whether your design requires a specific pole count, unique slot configurations, or unconventional outer dimensions to fit a proprietary housing, our engineering team translates your CAD models into precise stamping dies. The tooling process utilizes wire EDM and CNC machining to achieve tolerances measured in microns. When handling the finished custom cores, the precise edges and flawless stacking reflect the rigorous tooling standards. This in-house tooling capability not only protects your intellectual property but also significantly compresses the development timeline from initial prototyping to final validation.
Consistency across large production volumes is critical for assembly line stability. To guarantee this, our manufacturing facilities strictly adhere to the IATF16949 automotive-grade quality management system. Every batch of silicon steel and neodymium magnets undergoes rigorous incoming material inspection to verify magnetic permeability and tensile strength. Throughout the stamping and assembly phases, automated optical inspection systems monitor lamination alignment and dimensional accuracy in real-time. Furthermore, our operations are certified under ISO14001 and ISO45001, reflecting our commitment to environmental responsibility and occupational health. By maintaining these stringent protocols, we ensure that the ten-thousandth stator rotor core performs with the exact same reliability and magnetic characteristics as the very first unit off the line, virtually eliminating the risk of field failures for your end products.
The exceptional magnetic performance and structural integrity of these cores make them the ideal foundation for motors operating in highly demanding environments. They are perfectly adapted for the traction motors of new energy vehicles (EVs), where power density and thermal management are paramount. In the realm of industrial robotics and automation control, the low vibration characteristics enable precise servo positioning. They are equally critical for the reliable operation of medical devices, the sustained flight times of drones (including FPV and heavy-lift agricultural models), and the rugged durability required in professional power tools.
Understanding that supply chain velocity is a major factor in manufacturing success, we have optimized our production scheduling to ensure rapid turnaround times. For standard component configurations, orders are processed and ready for shipment within a 3 to 10-day window. For complex, non-standard custom orders requiring specialized mold setup, we maintain a strict 10 to 20-day delivery schedule. This predictable and swift fulfillment cycle empowers procurement teams to minimize warehouse inventory holding costs while ensuring assembly lines remain continuously supplied without disruption.
