Electric motor efficiency directly reflects the quality of its internal magnetic components. A poorly designed magnetic circuit bleeds energy, while a highly optimized one converts electrical power into mechanical force seamlessly. At the heart of this energy conversion lies the motor rotor stator core. This foundational architecture dictates the power density, thermal management capabilities, and overall efficiency of any electric motor. Whether you design traction motors for electric vehicles or specify industrial pumps, you must understand these core components thoroughly. This article serves as a comprehensive technical and procurement guide. We will explore structural variations, material impacts, and modern manufacturing considerations. You will learn how to evaluate components for specific engineering applications. We will also help you identify the right manufacturing partners to ensure optimal mechanical and electrical performance.
The interaction between the rotor core and stator core determines the overarching mechanical output and energy efficiency of the motor.
Selecting a laminated motor core made from specialized materials like silicon steel is critical for minimizing eddy currents and hysteresis losses.
Evaluating a motor core supplier requires strict adherence to dimensional tolerances, material certifications, and scalable production capabilities.
Balancing upfront tooling costs with long-term energy savings is the primary decision-making framework for engineers and procurement teams.

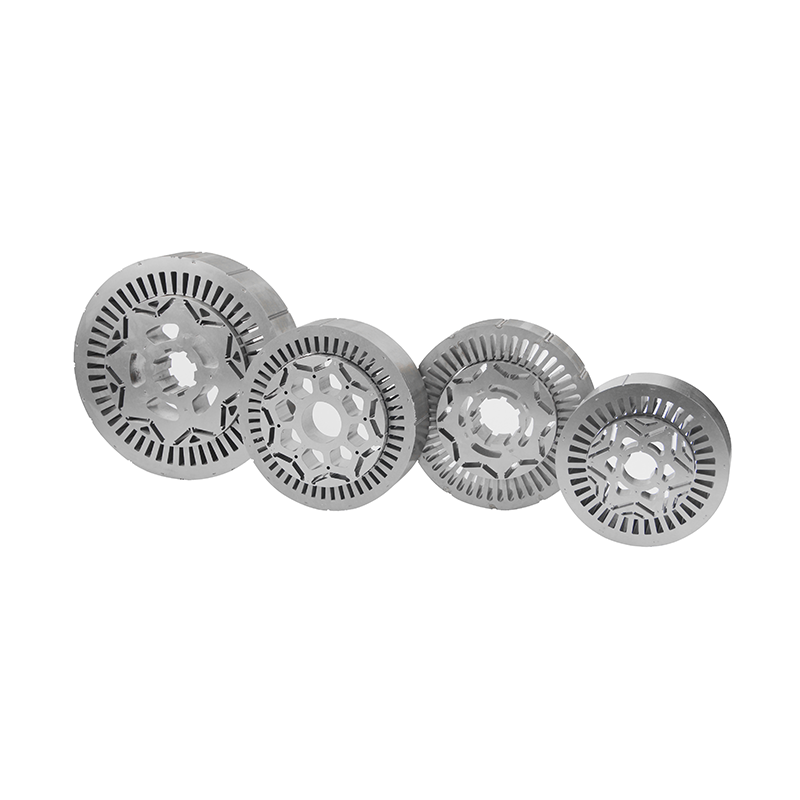

The electric motor core acts as the central facilitator for any motor's magnetic circuit. You can think of it as a highly conductive highway. Magnetic flux travels across this highway to generate physical motion. Engineers divide this complex system into two primary, interacting components.
The stator core remains completely stationary during operation. It houses the complex copper windings. When alternating current passes through these windings, the stator generates a powerful, rapidly rotating magnetic field. Manufacturers build this core using highly precise geometric slots. These slots hold the copper coils securely while optimizing the ideal path for magnetic flux. Poor slot design leads to excessive energy waste and magnetic leakage. Therefore, engineers spend significant time refining stator geometry through electromagnetic simulation.
Positioned securely inside (or sometimes outside) the stator, the rotor core serves as the rotating component. It constantly reacts to the stator's shifting magnetic field. This powerful magnetic reaction produces pure mechanical torque. The rotor connects directly to the central motor shaft. It transfers this rotational energy out to wheels, industrial pumps, or cooling fans. Depending on the specific motor type, the rotor might contain rare-earth permanent magnets, conductive aluminum bars, or precisely shaped bare steel poles.
These highly technical functions directly impact your end-user metrics and operational success. Precise core interaction significantly reduces internal mechanical vibration. Lower vibration means vastly less wear on your bearings and housings. Additionally, an optimized magnetic circuit naturally lowers internal heat generation. Less heat extends the motor's operational lifespan dramatically. Upgrading these core components often prevents costly premature system failures in the field.
Engineers rarely use solid iron blocks for modern high-efficiency motors. Instead, material science dictates the use of highly specialized alloys and incredibly precise manufacturing techniques to control electromagnetic behavior.
A silicon steel motor core, universally known in the industry as electrical steel, dominates modern manufacturing. Adding carefully measured amounts of silicon to standard steel drastically alters its physical and electrical properties. First, silicon significantly increases the metal's intrinsic electrical resistivity. High resistivity acts as a blockade, stopping rogue electrical currents from freely circulating within the metal base. Second, it greatly improves magnetic permeability. This means magnetic flux moves through the steel structure much easier. These dual benefits make silicon steel the undisputed industry standard.
Electromagnetic physics presents a major challenge in motor design: eddy currents. When a magnetic field changes rapidly within a solid conductor, it induces small, swirling electrical currents inside the metal itself. These localized currents generate massive heat and waste valuable electrical energy. To stop this phenomenon entirely, we use a laminated motor core. Manufacturers slice the steel into extremely thin individual sheets. They coat every single sheet in a microscopic insulating varnish. Stacking these sheets effectively blocks eddy currents. The insulating coating creates physical barriers that the stray currents simply cannot cross.
Your intended production volumes dictate your ideal manufacturing method. Consider these two primary approaches:
Laser Cutting: This method is ideal for rapid prototyping and low-volume production. It requires zero upfront tooling costs, allowing rapid design iterations. However, lasers can cause intense localized thermal stress on the sheet edges. This thermal stress slightly degrades the local magnetic performance of the steel.
Progressive Die Stamping: This is perfect for high-speed mass production. A massive mechanical press punches out laminations continuously. It requires very expensive upfront tooling and die creation. Fortunately, it maintains excellent edge quality, zero thermal stress, and perfect dimensional consistency over millions of production cycles.
Insulation layer degradation poses a severe manufacturing risk during stamping. If a stamping die becomes dull, it inherently burrs the steel edges upon impact. These microscopic metal burrs fold over and pierce the thin insulation layer, electrically shorting out adjacent sheets. Top-tier manufacturers mitigate this critical risk daily. They implement incredibly strict die maintenance and sharpening schedules. They also employ advanced edge-conditioning processes to guarantee lamination integrity throughout the entire stack.
Every commercial application requires a specific core architecture. You must carefully match the internal design to your exact performance and environmental requirements.
Induction motors rule standard AC industrial applications worldwide. They feature a unique "squirrel-cage" rotor design. Manufacturers die-cast molten aluminum or copper directly into the rotor slots to form conductive bars. The stator lamination requires a standard, robust layout optimized for continuous, reliable operation. These conventional cores prioritize extreme durability, simplicity, and low manufacturing costs over ultra-high efficiency.
Electric vehicles, aerospace actuators, and precision robotics rely heavily on BLDC motors. In these advanced designs, the rotor securely holds high-power permanent magnets, such as Neodymium. The stator requires exceptionally high-precision slot designs. Engineers must carefully shape the stator teeth to reduce "cogging torque." Cogging torque causes jerky, pulsing movements at low speeds. Precision stamping eliminates this issue, ensuring buttery-smooth rotation and exact position control.
SRMs represent a highly robust, completely magnet-free alternative. Both the stator and rotor feature prominent, toothed "salient" poles. They operate purely through magnetic reluctance rather than relying on permanent magnets or rotor windings. These specialized cores thrive in incredibly harsh environments. They handle extreme temperature spikes and ultra-high-speed operations flawlessly. Without expensive rare-earth magnets, they offer significant cost advantages for specialized heavy industrial uses.
Matching the core architecture to the application requires careful technical analysis. Below is a framework to guide your initial design choices.
Application Scenario | Recommended Core Architecture | Key Engineering Priority |
|---|---|---|
Continuous Industrial Pumps | AC Induction Squirrel-Cage | Rugged durability and grid compatibility |
EV Traction Motors | Permanent Magnet Synchronous | High power density and torque control |
High-Speed Harsh Environments | Switched Reluctance (SRM) | Magnet-free thermal stability |
Consumer Drones & Gimbals | Outrunner BLDC | Lightweight, low-speed torque generation |
Specifying a motor core involves balancing complex electromechanical trade-offs. You must look far past the initial unit price tag to guarantee operational success.
Lamination thickness drives a massive wedge between operational efficiency and upfront tooling cost. Thinner steel sheets yield much higher efficiency by aggressively cutting eddy current losses. For example, a 0.2mm lamination performs beautifully in a high-frequency EV motor. However, it requires hundreds of extra sheets per stack compared to a standard 0.5mm lamination. This sheer volume drastically drives up stamping time, accelerates die wear, and complicates automated assembly. You must analyze this decision matrix carefully. Only high-performance, continuous-duty applications usually justify the premium expense of ultra-thin electrical steel.
Thickness (mm) | Frequency Suitability | Manufacturing Complexity | Eddy Current Mitigation |
|---|---|---|---|
0.50 | Standard (50/60 Hz) | Low | Basic |
0.35 | Medium (Up to 400 Hz) | Moderate | Good |
0.20 | High (400 Hz+) | High | Excellent |
0.10 | Ultra-High (Aerospace) | Premium | Superior |
The air gap between the stator inner diameter and the rotor outer diameter represents the single most critical dimensional metric. Magnetic flux must physically jump across this air gap. If the gap is too wide, magnetic strength plummets, drawing excessive current. If stamping precision is poor, the air gap becomes completely uneven. An uneven gap causes severe asymmetrical magnetic pull. This uneven pull acts as an unbalanced physical weight. It generates loud acoustic noise, severe rotational vibration, and sharp efficiency drops. Strict dimensional tolerance during stamping is absolutely non-negotiable.
Core slot design directly impacts your system's heat dissipation. During peak load cycles, copper windings generate intense thermal loads. The core must act as an efficient heatsink. Premium material grades conduct heat away from the sensitive windings efficiently. Poorly designed cores trap heat, threatening to melt winding insulation and cause catastrophic shorts. Modern engineers often incorporate specific cooling channels directly into the outer stator laminations to flow air or liquid coolant.
Regional regulations increasingly mandate strict efficiency minimums for commercial deployment. Industrial motors often must meet IE3 (Premium Efficiency), IE4 (Super Premium Efficiency), or IE5 (Ultra Premium Efficiency) global standards. Reaching an IE4 or IE5 rating is physically impossible using cheap, low-grade silicon steel. Procurement teams must proactively verify that their selected core materials mathematically align with these strict regulatory compliance targets.
Partnering with a reliable motor core supplier completely determines your project's long-term success. Use these specific criteria to audit potential manufacturing partners.
Assess their exact ability to transition smoothly between development phases. A great supplier handles rapid prototyping via laser cutting first. Once your engineering team validates the prototype design, they should seamlessly transition the project to high-volume progressive stamping. This transition must happen without any measurable drop in dimensional quality. You should routinely verify their mechanical press tonnage capacities and monthly sheet metal output capabilities.
Look for rigorous, strictly data-driven testing capabilities on their factory floor.
Epstein Frame Testing: This standard metallurgical test accurately measures the magnetic core loss of the raw electrical steel before stamping even begins.
CMM Checks: Coordinate measuring machines ensure the final stamped parts constantly meet strict micron-level dimensional tolerances.
Varnish Inspection: Testing the insulation layer thickness ensures it survives the heavy mechanical pressing process without flaking.
The best suppliers offer comprehensive, value-added assembly services. Ask if they provide specialized core interlocking. Interlocking automatically joins laminations inside the stamping die, saving assembly time. Do they offer precision laser welding for rigid stator housing? Better yet, evaluate their adhesive bonding capabilities. Self-bonding varnishes eliminate the need for mechanical welds, further reducing magnetic losses. Additionally, having in-house aluminum die-casting for induction rotors saves immense logistical headaches and shipping costs.
Start your evaluation by requesting physical sample laminations. Audit their raw material supply chain thoroughly. You must ensure they use fully traceable, high-grade electrical steel directly from reputable mills. Finally, review their active ISO 9001 and IATF 16949 certifications. Automotive, aerospace, and high-end industrial applications legally require these stringent quality management systems.
The rotor and stator cores are far more than simple metal commodity parts. They are highly engineered electromagnetic components that fully dictate your motor's market viability and performance ceiling. Choosing the right lamination thickness, material grade, and specific manufacturing process yields massive performance dividends.
We strongly advise buyers to prioritize exceptional energy savings and long-term durability over chasing the lowest initial unit price. A cheaper, poorly stamped core inherently results in a hot, noisy, and highly inefficient motor. Instead, invest heavily in precision engineering upfront to guarantee operational stability.
Do not leave your critical magnetic circuit to chance. Consult with a specialized engineering manufacturing team early in your conceptual design phase. Request a detailed technical quote precisely tailored to your specific motor design requirements. Optimize your core selection today to reliably power the demanding innovations of tomorrow.
A: The standard thickness ranges from 0.35mm to 0.5mm for most industrial motors. This range beautifully balances stamping costs with acceptable eddy current losses. However, high-frequency motors, like EV traction drives, require much thinner sheets (typically 0.2mm to 0.27mm). Thinner laminations restrict eddy currents far more effectively at high rotational speeds, preserving battery energy.
A: Silicon is added to significantly increase the base steel's electrical resistance. When internal resistance is high, harmful eddy currents struggle to form within the metal plates. This sharp reduction in stray currents directly minimizes heat generation and energy waste. Furthermore, silicon improves the material's magnetic permeability, allowing magnetic flux to flow smoothly.
A: Welded cores use precision laser or TIG welding to hold stacked laminations together. Welding is exceptionally fast and cost-effective but can electrically short the lamination edges, slightly increasing magnetic loss. Bonded cores use specialized self-bonding adhesives cured by oven heat. Bonding completely eliminates edge shorting and improves structural rigidity, though it requires longer processing times.
A: A poor or uneven air gap severely disrupts the delicate magnetic interaction between the stator and rotor. When stamping inaccuracies cause an irregular gap, the magnetic pull becomes highly asymmetrical. This uneven force rapidly degrades mechanical bearings, causes excessive acoustic noise, generates heavy vibration, and significantly lowers the motor's total energy conversion efficiency.
